Room sizing worksheet

Mini Split BTU Calculator

Record a room. See three capacity scenarios and the limits that matter before choosing equipment.

Enter room area to see screening scenarios

Room conditions and installation preference

Blank means unknown. The reference is 8 feet; no height is assumed.

Printable method and no-JavaScript worksheet

Write area A in ft², or calculate length × width in feet. Area: __________. Purpose: __________. Ceiling height: __________. Insulation: __________. Sun/windows: __________. Layout: __________. Calculate A × 20 for cooling, A × 25 for heating/cooling and A × 30 for primary cold-region heating. Keep all three points. They apply to an ordinary open room with an 8-foot ceiling; other or unknown conditions make them illustrative only.

Area screening arithmetic, not equipment sizes
Area ft²Cooling ×20Heat/cool ×25Cold heating ×30
2004000 BTU/h5000 BTU/h6000 BTU/h
4008000 BTU/h10000 BTU/h12000 BTU/h
60012000 BTU/h15000 BTU/h18000 BTU/h

Your results BTU/h: ______ / ______ / ______. Unknowns: __________________. A full room load and exact heating-output data remain separate tasks. No head count or retail capacity is selected.

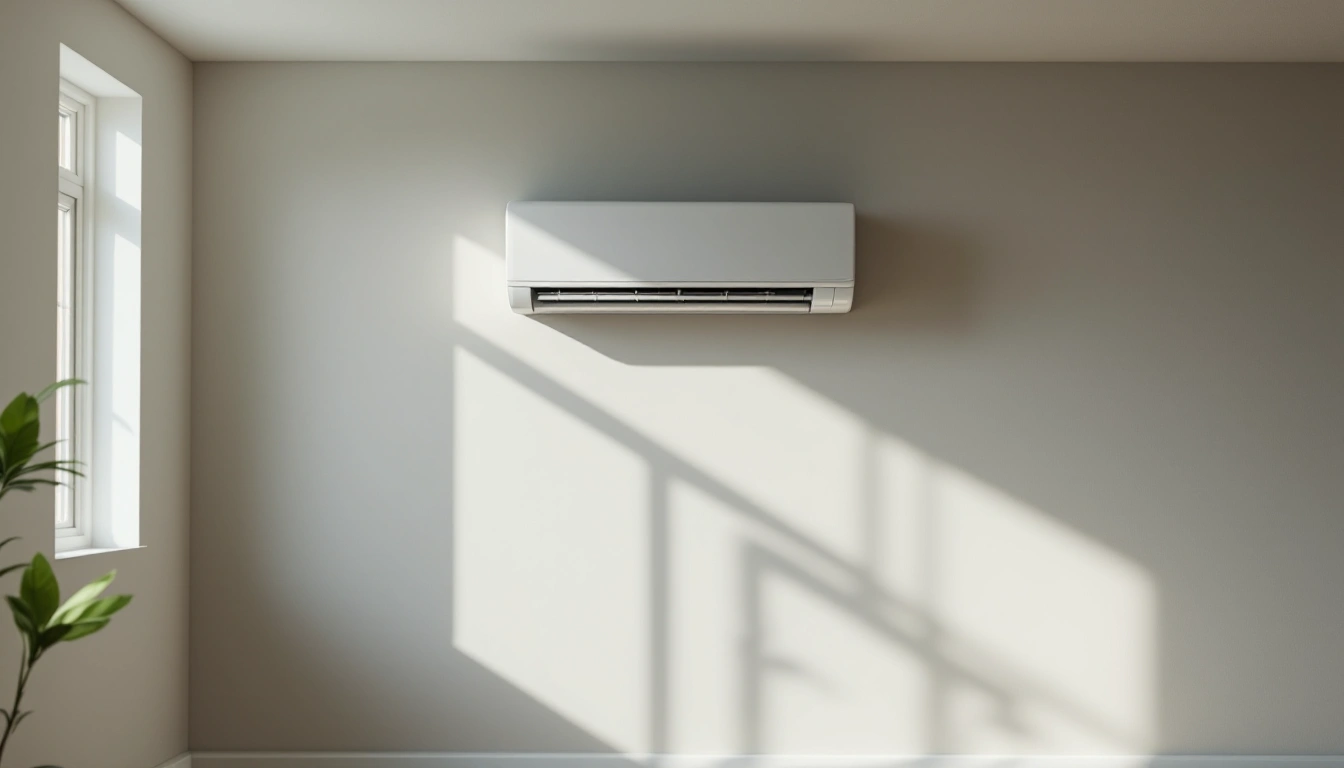

Residential living room with a wall-mounted indoor head

The mini split BTU calculator shows three floor-area scenarios. It does not choose a unit for you. Enter a room's area, or its length and width, then record the ceiling height and room conditions. Unknown conditions stay unknown.

For a 400-square-foot room, the screening range is 8000 to 12000 BTU/h. The three points are 8000 for cooling, 10000 for heating and cooling, and 12000 for primary heating in a cold region. All are area-based starting points for an ordinary open room with an 8-foot ceiling. None is a measured heat loss or a purchase size.

Mini split BTU calculator method: three scenarios

Area in square feet equals length times width in feet. Multiply that area by 20, 25 and 30. These factors come from Pioneer's US sizing guidance.

The tool keeps all three points visible. Your purpose marks one point for planning; it does not remove the other two. Results round to whole BTU/h for display, with no rounding to a retail unit size. BTU/h describes heat moved per hour, rather than electricity used.

8-foot reference and room limits

A high ceiling, poor insulation, strong sun or closed rooms puts the room outside this baseline. Unknown conditions do too. The same arithmetic remains visible as an illustration, with a warning. It is not a corrected sizing estimate.

ACCA's Manual J describes a residential load method that accounts for building and weather data. Heating also needs the exact system's output at the outdoor design temperature. A nominal cooling label does not prove that winter output.

For several rooms, use How Many Mini Splits Do I Need to separate indoor delivery points from outdoor-unit count.

FAQ

Does the result tell me which capacity to buy?

No. It shows a screening range based on floor area. It does not calculate the room's actual heat gain or heat loss. Keep the range with your room measurements, then compare a room load with exact equipment data before choosing a unit. Do not treat the top point as a required purchase size.

Can I use the tool for several closed rooms?

You can record their combined area to see the arithmetic, but the tool flags that layout. It cannot say how air will reach rooms behind closed doors. Make a room-by-room plan with each room's load and intended use. One outdoor unit does not by itself prove that one indoor head will serve every room.

Mini split BTU calculator verdict

Use the mini split BTU calculator to record a range and its limits. Then compare efficiency and equipment choices or build a project quote worksheet. Send method corrections through Contact. Room entries stay in this browser and are not saved by this tool.
